Latest release (September 2024)

The release of GroupDocs.Signature version 24.9 includes bug fixes and new features.

Full list of changes in this release

KeyCategorySummary
SIGNATURENET-5077★ FeatureImplement Document Preview options PreviewOptions.Resolution property
SIGNATURENET-5242🔧 FixImage is invisible in digital signature on PDF files

Major features

Including the ability to preview documents with customizable resolution using the PreviewOptions.Resolution property

	public static void GetPreview()
    {
        // The path to the documents directory.
        string filePath = "sample.pdf";
        using (Signature signature = new Signature(filePath))
        {
            int resolution = 96;
            // create preview options object
            PreviewOptions previewOption = new PreviewOptions(CreatePageStream, ReleasePageStream, resolution)
            {
                PreviewFormat = PreviewOptions.PreviewFormats.JPEG,
                // set property to hide all known signatures
                HideSignatures = true
            };
            // generate preview
            signature.GeneratePreview(previewOption);
        }
    }

    private static Stream CreatePageStream(PreviewPageData pageData)
    {
        string imageFilePath = Path.Combine("PreviewFolderPath", "image-0" + pageData.PageNumber.ToString() + ".jpg");
        var folder = Path.GetDirectoryName(imageFilePath);
        if(!Directory.Exists(folder))
        {
            Directory.CreateDirectory(folder);
        }
        return new System.IO.FileStream(imageFilePath, FileMode.Create);
    }

    private static void ReleasePageStream(PreviewPageData pageData, Stream pageStream)
    {
        pageStream.Dispose();
        string imageFilePath = Path.Combine("PreviewFolderPath", "image-0" + pageData.PageNumber.ToString() + ".jpg");
        Console.WriteLine("Image file {0} is ready for preview", imageFilePath);
    }

The following image shows the preview of sample.pdf with different Resolution value:

Document preview with different resolution value

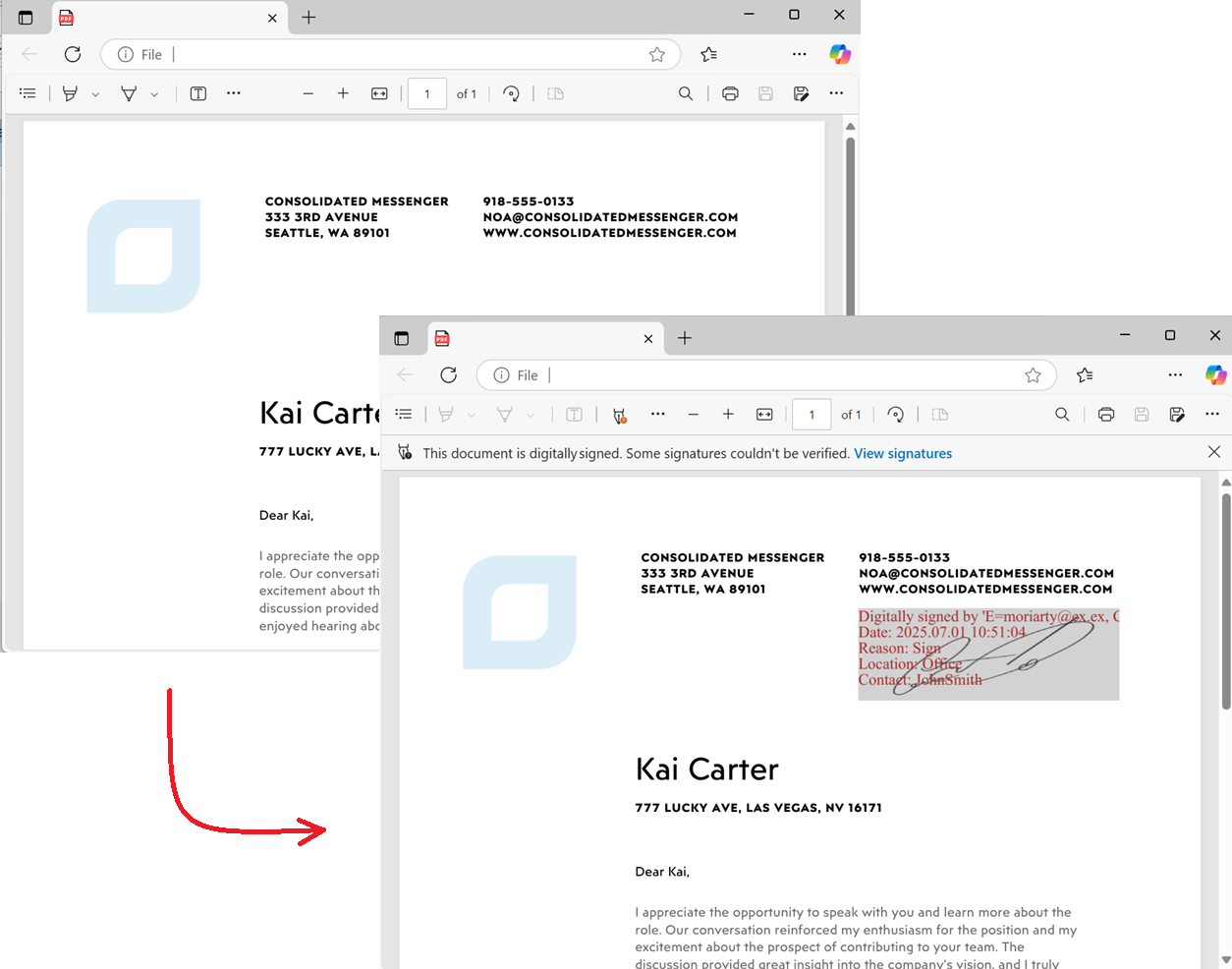

Fix image visibility issue in digital signatures on PDF files

This fix allows users to properly display images within their digital signatures

		string sourceFile = "sample.pdf";
        string outputFile = "result.pdf";
        string password = "1234567890";
        string imageFilePath = "signature-01.jpg";
        string certFile = "test-cert.pfx";

        using (Signature signature = new Signature(sourceFile))
        {
            // initialize digital option with certificate file path
            DigitalSignOptions options = new DigitalSignOptions(certFile)
            {
                // certifiate password
                Password = "1234567890",
                // digital certificate details
                Reason = "Sign",
                Contact = "JohnSmith",
                Location = "Office1",
                // image as digital certificate appearance on document pages
                ImageFilePath = imageFilePath,
                // set signature location
                Width = 200,
                Height = 100,
                Margin = new Padding() {Bottom = 100, Right = 100},
                VerticalAlignment = VerticalAlignment.Bottom,
                HorizontalAlignment = HorizontalAlignment.Right,
            };
            signature.Sign(outputFile, options);
        }
